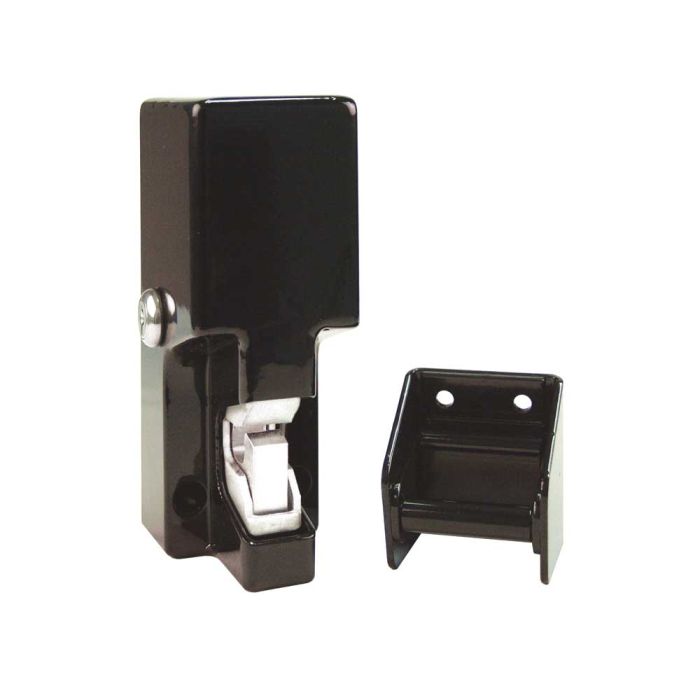

The GL1 functions equally well in both electrically and manually operated gate installations and can be used for swing gates, sliding gates, stock cage gates or other applications.
Key Features
Operates under pre-load up to 100 lbs.
Automatic dual voltage - no field adjustment required
Manual key override (right or left hand)
Self-aligning receiver (+/- 1/2" horizontally) helps compensate for gate misalignment and sag
Tamper proof cast housing
Latch status monitor switch (SPDT)
Heavy wall 1/2" inside diameter threaded steel coupling
Surface Mount
Black finish
Holding Force: 2000 lbs. [907 kg]
Current Draw and Voltage: - 12 Volts Initial (Peak): (~1.0 sec.) at 870mA - Reduced: 290mA / Power Consumption: 3.5 Watts - 24 Volts Initial (Peak): (~1.0 sec.) at 720mA - Reduced: 170mA / Power Consumption: 4.1 Watts
